Screenspace Outline Shader

I created an outline shader to further fit the möbius drawing style.

Scene with screenspace outline shader, models by our artist Jerry

Artists can change the edge thickness and edge sensitivity detection based on relative normal difference. It ensures not drawing outlines for smoother edges.

Breakdown

This shader detects two areas to decide whether to draw an edge: A sudden change in depth or a sudden change in normal direction. It then combines these two edge detection images for the final result. It currently takes 9 samples for each pixel, if it is too expensive for low-end devices then only 4 samples is needed.

Depth detection

The depth edge detection is calcalated from applying a 3x3 sobel filter to the depth buffer.

for (int y = -1; y <= 1; y++)
{
    for (int x = -1; x <= 1; x++)
    {
        if (x == 0 && y == 0) continue;
        float2 offsetUV = i.uv + displace + _Thickness * _CameraDepthTexture_TexelSize.xy * float2(x, y);

        // assume ortho camera bc our game is ortho view
        float sampleDepth = SAMPLE_DEPTH_TEXTURE(_CameraDepthTexture, sampler_CameraDepthTexture, offsetUV);
        sampleDepth = _ProjectionParams.x == 1? sampleDepth: 1 - sampleDepth; // near plane = 0.0, far plane = 1.0
        float rawDepth = lerp(_ProjectionParams.y, _ProjectionParams.z, sampleDepth);
        sobelXDepth += abs(rawCenterDepth - rawDepth) * sobelXMat[1-y][x+1];
        sobelYDepth += abs(rawCenterDepth - rawDepth) * sobelYMat[1-y][x+1];
    }
}

Edges from depth detection

Normal detection

The normal edge detection is calculated from approximating the magnitude of gradient of the normal vector field.

for (int x = -1; x <= 1; x++)
{
    for (int y = -1; y <= 1; y++)
    {
        float2 offsetUV = i.uv + displace + _Thickness * _CameraNormalsTexture_TexelSize.xy * float2(x, y);

        float3 sampleNormal = SAMPLE_TEXTURE2D(_CameraNormalsTexture, sampler_CameraNormalsTexture, offsetUV).xyz;
        float intensity = abs(dot(centerNormal, sampleNormal));

        // Exclude areas with small normal difference and areas with no normal(skybox)
        float normalFlag = (intensity < smoothAngle) * (length(centerNormal) > 0.01);

        edgeNormal += normalFlag * (1 - intensity);
    }
}

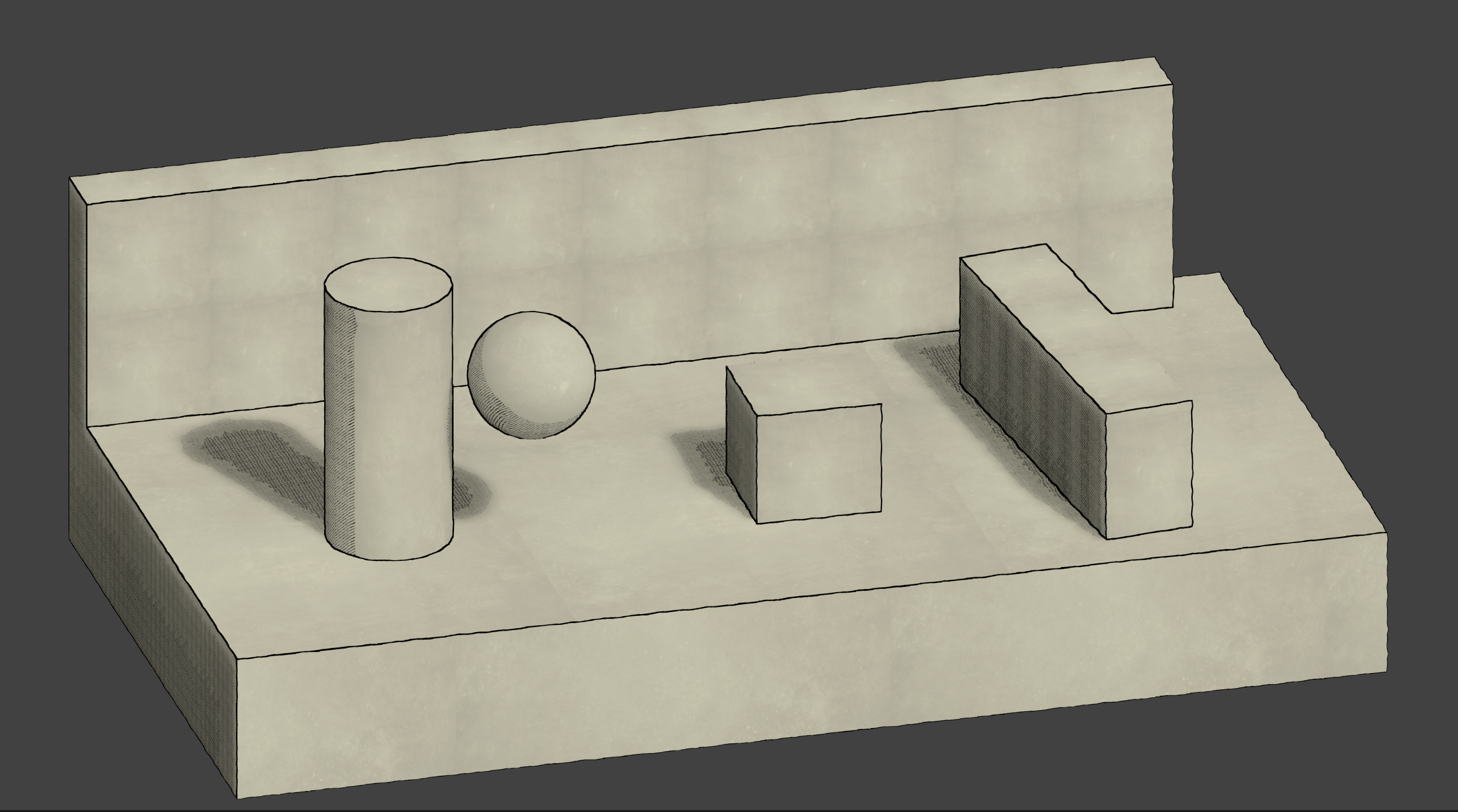

Edges from normal detection
